Natural rubber is an important industrial raw material and strategic material. The related products of natural rubber involve various aspects of the national economy and people's livelihood of the whole society.

Rubber packaging is an important process in rubber processing and production, and currently requires a significant amount of manual assistance, accounting for about 30% of the entire production line's labor.

From this perspective alone, improving the automation level of rubber packaging machines can further reduce auxiliary labor and labor costs, and play a crucial role in improving the production efficiency and efficiency of natural rubber initial processing enterprises. At the same time, it is of great significance to promote the development of China's natural rubber industry.

This article analyzes the specifications, performance, and parameters of Zhenghe Mechanical Rubber Packaging Machine today. Let's learn about the knowledge of rubber packaging machine specifications, performance parameters, and explore the development direction and trends of packaging machines together.

Usage: The hydraulic automatic packaging machine is designed specifically for standard rubber packaging, efficiently and automatically breaking rubber particles into rubber bags, which is economical and practical. Used for packaging granular rubber in rubber processing plants. Standard rubber blocks for packaging machines can also be customized according to customer requirements. Welcome friends from all over the world to call and discuss business.

Keywords: Natural rubber packaging machine specifications, performance parameters, knowledge, development direction and trend of rubber packaging machines

Working principle of rubber packaging machine

Zhenghe Machinery Rubber Packaging Machine Manufacturer. The rubber packaging machine is a hydraulic rubber packaging machine, consisting of a frame, packaging box, main oil cylinder, pressure head, and control box. It uses the thrust of the main oil cylinder to automatically press the specified mass of particle standard rubber into tight rubber blocks according to the set program. Hydraulic pressure rises through the piston to the appropriate pressure to compact the rubber, thereby achieving the function of a standardized rubber package.

This machine adopts advanced hydraulic system and PLC integrated electrical control system, which is convenient, safe, reliable, easy to maintain, and has stable product quality and performance. It is a rubber packaging machinery.

[Application of Rubber Packaging Machine]

The rubber hydraulic packaging machine is mainly used in the packaging section of natural rubber production. It uses the pressure of liquid to compress the particles (film) rubber, thereby obtaining the same size and specification of rubber bags for packaging and transportation. The rubber bags packaged by this machine have the characteristics of non rebound and uniform size. The packaged rubber bags can be reduced by about 40% compared to the original volume, greatly saving transportation, packaging and other costs.

Technical parameters of rubber packaging machine

The hydraulic packaging machine is an auxiliary box cover rotating four column hydraulic packaging machine, equipped with a set of packaging boxes for standard rubber packaging, and customized packaging boxes according to customer requirements.

Rubber packaging machine and hydraulic packaging machine

Rubber packaging machine and hydraulic packaging machine

Rubber packaging machine specifications

Rubber packaging machine model: YDB-1000 YDB-1000K

Packing Box Specification (mm) for Rubber Packaging Machine: 600 * 400 * 450/680 * 350 * 450/600 * 400 * 450/680 * 350 * 450

Rubber packaging machine motor power (kw): 11/18.5

Rubber packaging machine production capacity (kg/h): 2000/3500

External dimensions of rubber packaging machine (length * width * height) Dimension (L * W * H): 2900 * 1300 * 2600/1300 * 1100 * 1300/2900 * 1300 * 2600/1650 * 1300 * 1000

Rubber packaging machine weight (kg): 5500/6000

Specification chart of rubber packaging machine

Rubber packaging machine model

Model

Packaging specifications

Packing Box

Specification

(mm)

Motor power

Motor Power

(kw)

production capacity

Production

Capacity

(kg/h)

External dimensions

(length * width * height)

Dimension

(L * W * H)

weight

Weight

(kg)

YDB-1000

600 * 400 * 450

680 * 350 * 450

eleven

two thousand

2900 * 1300 * 2600

1300 * 1100 * 1300

five thousand and five hundred

YDB-1000K

600 * 400 * 450

680 * 350 * 450

eighteen point five

three thousand and five hundred

2900 * 1300 * 2600

1650 * 1300 * 1000

six thousand

Please click on the packaging machine model in the above chart to jump to the corresponding packaging machine page for details

Rubber packaging machine, hydraulic packaging machine, automatic packaging machine

Rubber packaging machine/Hydraulic packaging machine picture/Automatic packaging machine

Large precision casting production site - Zhenghe Machinery

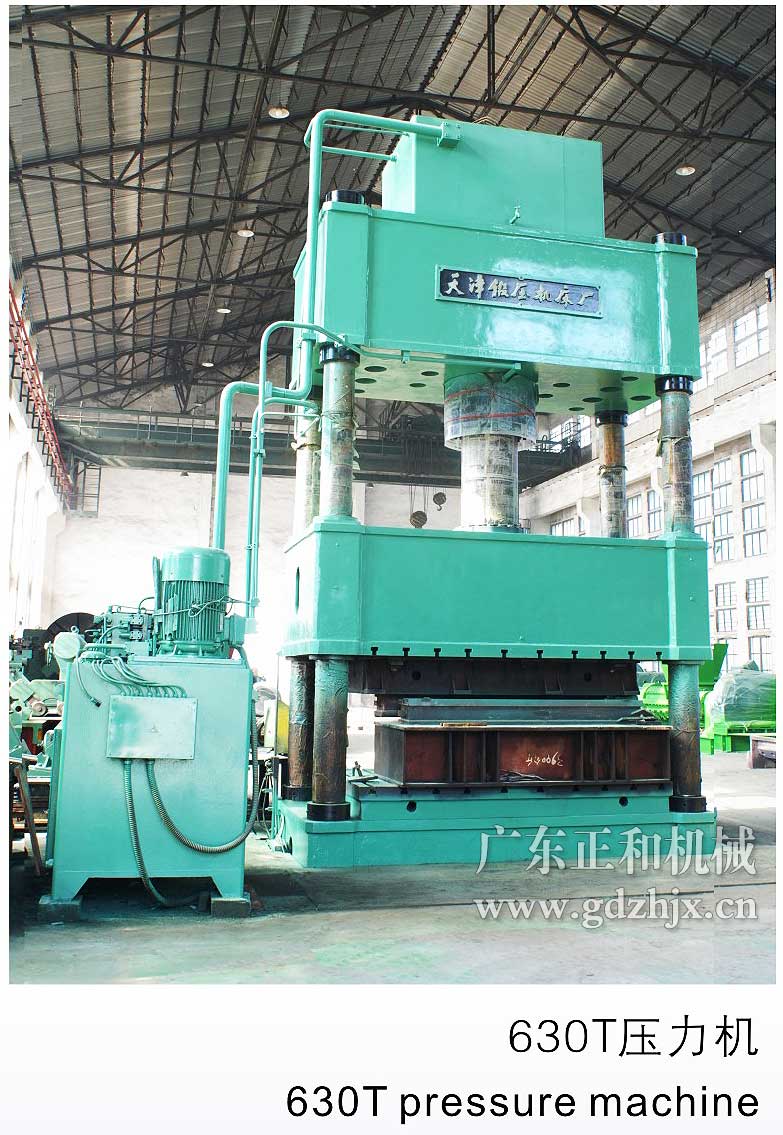

630T press

The above is the relevant content about the specifications, performance parameters, and knowledge of rubber packaging machines on Guangdong Zhenghe Machinery Network. If you would like to learn more about the exploration, design, production, production, installation, debugging, maintenance, and repair of rubber processing equipment and sugarcane sugar making equipment, please feel free to contact the business specialist of Guangdong Zhenghe Machinery Co., Ltd. via WeChat or phone. Zhenghe Machinery will warmly serve you. Service hotline: 13824803990, 0759-3363353; WeChat ID: 13828211689
