Mechanical name: Guangdong Zhenghe Rubber Crusher

Classification: Processing Machinery>Rubber Processing Machinery>Rubber Crusher, Rubber Crusher Complete Equipment

Machinery brand Zhenghe Machinery (View)

Mechanical model sj-500, Sj-600, sj-700 series

Product Name Rubber Crusher Complete Equipment

Manufacturer Guangdong Zhenghe Machinery Co., Ltd. (View)

For details on the power of the matching rubber crusher, please contact Zhenghe Machinery

Drive form: Crusher drive form, please contact Zhenghe Machinery

For detailed prices of rubber crushers in various regions, please contact Zhenghe Machinery

For details on subsidies for rubber crushers in various regions, please contact Zhenghe Machinery

Mechanical abbreviation: rubber crusher, rubber crusher, rubber breaker, rubber breaker, rubber pellet cutter, rubber pellet pre crusher

For details on the mechanical power of the rubber crusher, please contact Zhenghe Machinery

[Introduction to Rubber Crusher]

Rubber crusher, also known as rubber crusher, rubber breaker, rubber breaker, rubber pellet cutter, rubber pellet pre crusher, rubber crusher

[Purpose of rubber crusher]

The rubber crusher is used in the initial processing of natural rubber to crush, clean and remove impurities from the rubber. It is an equipment for producing No. 20 standard rubber.

[Structure and working principle of rubber crusher]

The rubber crushing machine is composed of a body, a knife shaft, a moving knife, a fixed knife, an electric motor, a reducer, a hopper, and so on.

The transmission of the rubber crusher is transmitted from the electric motor to the transition shaft, which is then transmitted to the reducer to directly drive the rotation of the knife shaft. A moving knife disc is installed on the knife shaft, and fixed knives are respectively installed in the front and back of the machine body. When the mixed rubber block is loaded from the hopper, the rotating moving knife disc breaks the mixed rubber block. The broken rubber material flows into the water tank through the inclined plate of the machine body, thus achieving the purpose of crushing and cleaning.

Rubber crusher model

SJ-50B

The diameter of the rubber shredder cutterhead

ф500mm

Rotational speed of the rubber crushing machine cutterhead

40r/min

Rubber crusher reducer model

ZSY280-31.5-55II

Rubber crusher reducer transmission ratio

thirty-one point five

Rubber crusher motor model

Y250M-4

Rubber crusher motor power

55KW

Production capacity of rubber crusher (dry rubber)

2000kg/h

Rubber breaker, rubber breaker, rubber pellet cutter, rubber pellet pre crusher, crusher

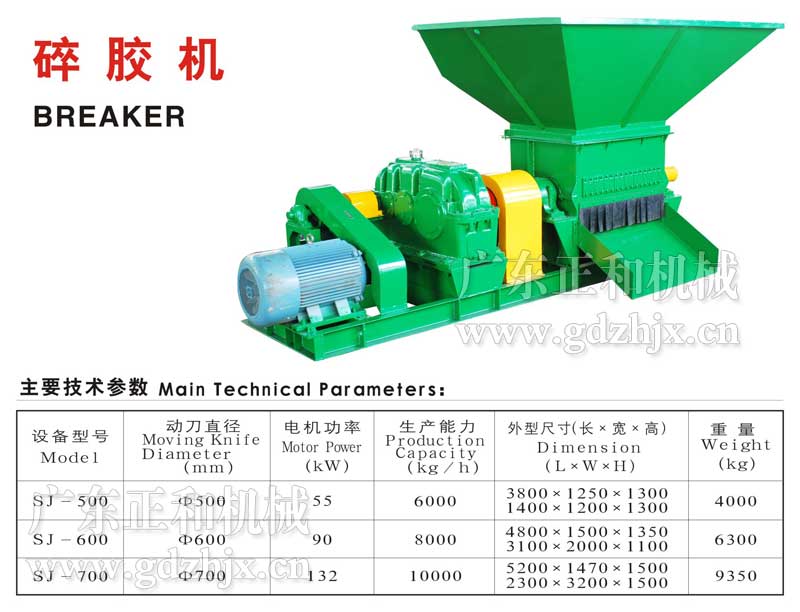

Picture of rubber crusher

Rubber crusher, rubber crusher, rubber breaker

Rubber crusher, rubber crusher, rubber breaker

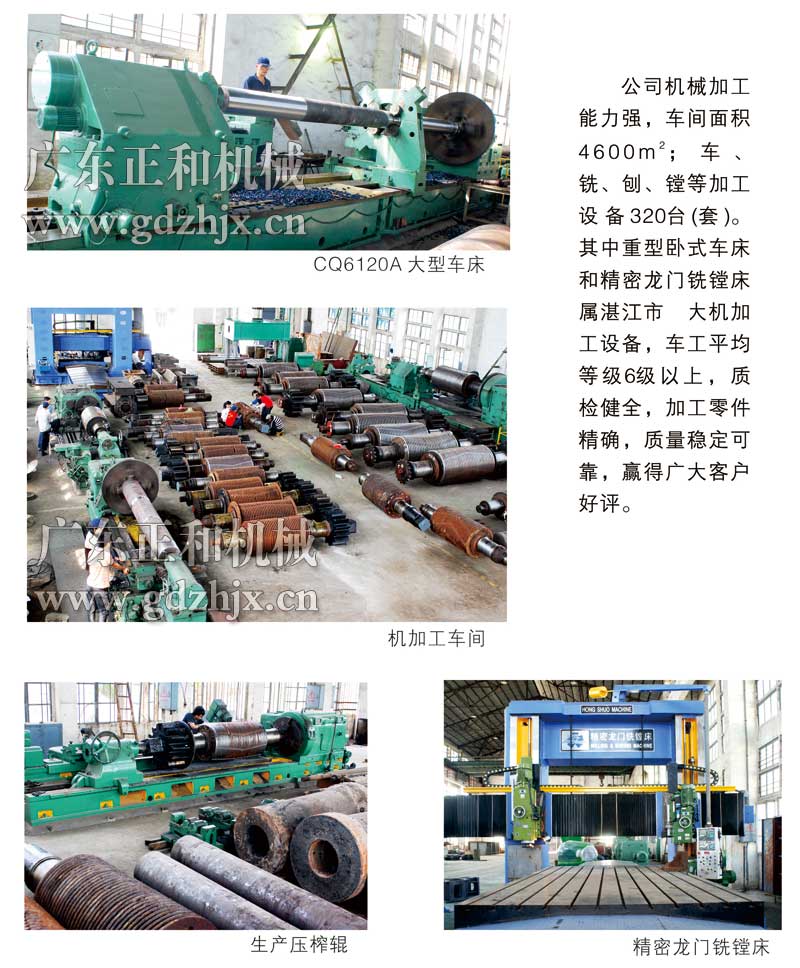

Zhenghe Machinery Production Capacity

Rubber crusher type:

Brand of rubber crusher:

Rubber crusher model:

Principle of rubber crusher:

Application of rubber crusher:

Rubber crusher parameters:

The main features of the rubber crusher are:

The above is an introduction to the complete set of equipment parameters for rubber crushers on Guangdong Zhenghe Machinery Network, including the prices, subsidies, pictures, and performance parameters of rubber crushers. If you would like to learn more about the exploration, design, production, installation, debugging, maintenance, and repair of rubber processing equipment and sugarcane sugar making equipment, please feel free to contact the business specialist of Guangdong Zhenghe Machinery Co., Ltd. via WeChat or phone. Zhenghe Machinery will warmly serve you. Service hotline: 13824803990, 0759-3363353; WeChat ID: 13828211689
